Products

Automatic Optical Inspection System

• Easy to program and fine tune
• Excellent resolution
• Serial number and bar code input
• Inspection logging facility with image storage for ultimate traceability
• Bare board cross check option
• Board alignment
• Fiducially and panel optimisation function

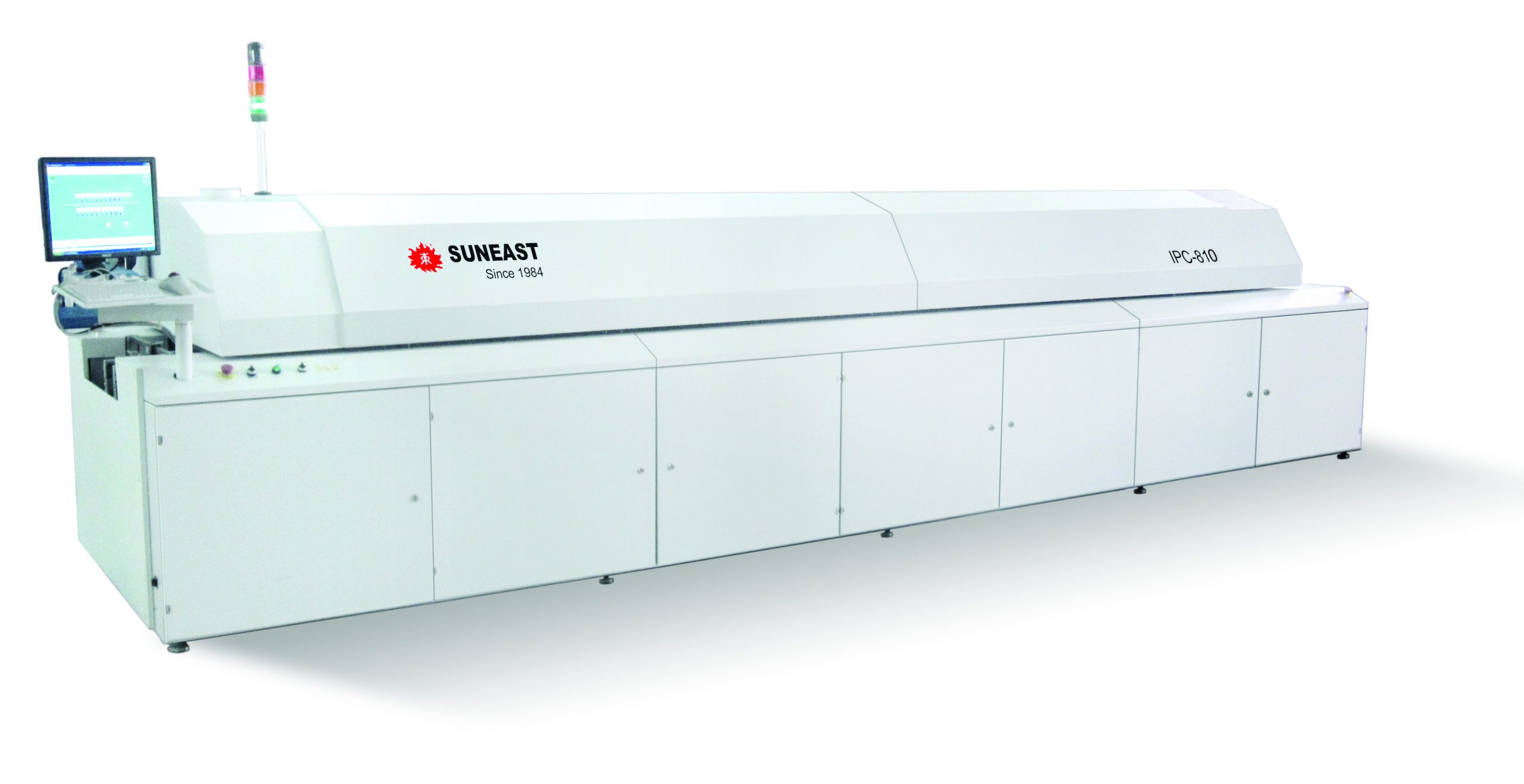

High performance hot air Reflow soldering systems

Selection of machines available with 6,8,10 and twelve vertical heating zones

• Excellent temperature uniformity and repeatability
• Instant response to high thermal load
• Lowest Delta T across the PCB

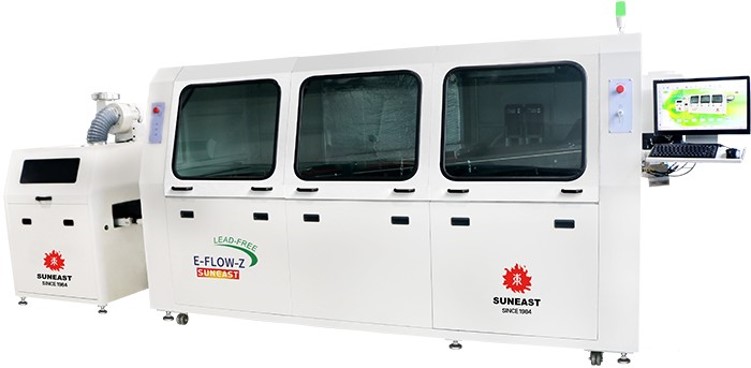

Leading industry proven wave soldering machine

• Positive spring clamp finger conveyor
• IR and convection preheating system
• Intelligent spray fluxer
• Chip wave and delta wave
• Ease of access for maintenance
• Lead free solder pot with 5 year warranty

Fully Automatic Screen Printing Systems to meet every application.

Fine pitch, Long Printing capability automatic 2 D inspection system.

• Excellent accuracy and repeatability – Calibration technology
• User friendly high performance systems to suit all requirements

In line modular Selective Soldering system

• Seperate fluxing
• preheating and soldering sectors
• micro jet fluxer
• convection preheating before and during soldering process
• electromagnetic pumping system with excellent repeatability
• High precision teaching and process viewing camera on board

Second User Equipment

Optimum Solder Recovery system – SS12M

• Designed to efficiently separate solder from solder dross
• Regulated heated chamber
• High-speed rotor reclaiming up to 80% of the solder
• All stainless-steel construction with 10kg capacity tank
• Small, light and very easily portable
• Return on Investment can be achieved in as little as 12 months
