Product Description
HP-730 Selective Coating Machine
Data Sheet DownloadAtomising valve and needle valve: One precision atomising valve H-905 and one pin dispensing valve H-D01 on three axes, with the track width adjusted electrically.
Boards from 50 to 450 mm wide: Component height up to 110 mm. X and Y travel at up to 800 mm/s and Z at up to 300 mm/s, with repeatability of ±0.02 mm.
Selective spray and line link: Point, line and curve paths avoid connectors and coat component edges. The program takes data in automatically, and the SMEMA port connects the machine to the line.

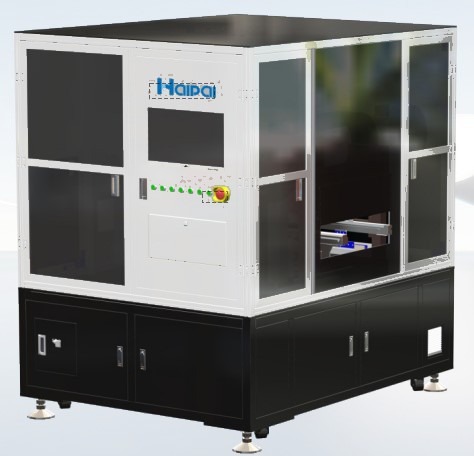

HP-PC400-6 Jet Coating Machine
Data Sheet DownloadTwo piezoelectric print heads, two positions reserved: An industrial PC runs Tetris printing software, with programming from a Gerber file, from an image, or by dragging modules into place.
400 × 400 mm print area: Component height up to 20 mm and an electrically adjusted rail from 50 to 400 mm. Repeatability is ±0.02 mm, with a maximum print speed of 500 mm/s.
20–50 µm in a single pass: Further passes are possible and thickness is held to ±5 µm. A 395 nm air-cooled UV LED provides the pre-cure, with a built-in ink-path clean.
